Biological Safety Cabinet
DescriptionBiological Safety Cabinet
Description
Class I Biological Safety Cabinet
Introduction:

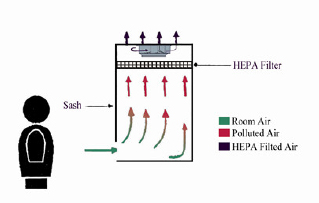

The Class I Biological Safety Cabinet is a negative-pressure,ventilated cabinet usually operated with an open front and a minimum face velocity at the work opening of at least 75 linear feet per minute (lfpm). All of the air from the cabinet is sent through a HEPA filter, either into the laboratory or to the outside.
Feartures:
* Soft touch control panel, LED display
* Stable airflow system, provide good operation and environment protection.
* Portable design, easy for installation
* One piece stainless steel work surface, easy for cleaning.
Spec:
Model |
HI-BYKG-I |
HI-BYKG-II |
HI-BYKG-III |
HI-BYKG-V |
External Dimensions (W*D*H) |
550*395*730 |
700*550*900 |
900*695*1080 |
1100*695*1924 |
Internal Dimensions (W*D*H) |
540*385*450 |
680*450*500 |
768*690*580 |
968*695*630 |
HEPA Filter |
1 piece |
|||
Airflow Velocity |
0.38~0.6m/s |
|||
Noise Level |
|
|
|
|
Fluorescent Lamp |
15W*1 |
18W*1 |
14W*2 |
21W*1 |
UV Lamp |
15W*1 |
18W*1 |
20W*1 |
20W*1 |
Power Consumption |
150W |
160W |
300W |
400W |
Main Body Construction |
Acrylic Plate |
Cold-roll steel plate with corrosion-proof coating+ toughened glass |
||
Operation table |
304 stainless steel |
|
||
Base Cabinet Material |
NO |
No |
Cold-roll steel plate with corrosion-proof coating |
|
Base Stand height |
NO |
No |
738mm |
|
Caster |
NO |
No |
Universal wheel with brake |
|
Electrical |
110~240V/50HZ~60HZ |
|||
Standard Accessory |
Fluorescent Light, UV |
Fluorescent Light, UV,Base Stand
|
